What is ADSS Single/Double Sheath? The Expert Guide to Aerial Cable

ADSS Single vs Double Sheath: 5 Ultimate Secrets for the Right Choice

Choosing between ADSS single vs double sheath cable can be confusing. This critical decision impacts your network's durability, cost, and lifespan. A wrong choice leads to premature failure. This guide cuts through the complexity, giving you the clarity needed for a bulletproof installation.

So, what exactly is the ADSS single vs double sheath dilemma? It's about the number of protective layers around the cable's core. This isn't just a minor detail; it's a fundamental design choice for different environments. ADSS cable, or All-Dielectric Self-Supporting cable, is designed for aerial installation on power lines. Its sheath system is its primary armor.

Understanding this sheath structure is key to selecting the right aerial Fiber- Opstik kabell.

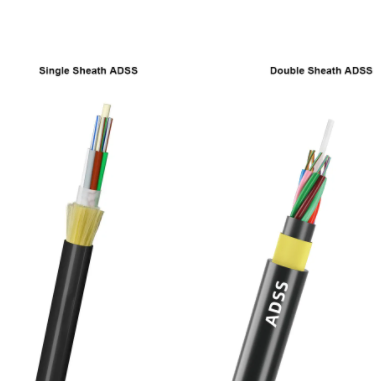

Secret #1: It's All About the Layers – Structure Explained

The core difference is surprisingly simple.

• Single Sheath ADSS: This design typically uses a tight buffer or central tube structure. The fibers are surrounded by strength members (like aramid yarn) and then a single, robust layer of polyethylene (PE) or anti-tracking (AT) material.

• Double Sheath ADSS: This features a Mehr complex, layered approach. After the fibers and strength members, an inner sheath is applied. Then, additional reinforcement may be added, followed by a tough outer sheath.

Think of it like clothing: a single sheath is a raincoat, while a double sheath is a waterproof jacket with a warm inner lining—better for harsher conditions.

Secret #2: The Protection Showdown – Mechanical Strength

The number of sheaths directly translates to mechanical performance. This is the heart of the ADSS single vs double sheath debate.

A study on cable failures in aerial environments found that mechanical damage from environmental stress is a leading cause of issues in under-specified cables. The double sheath's extra layer provides a significant advantage in resisting these forces.

Secret #3: Matching the Sheath to Your Environment

Your application environment decides the winner. There's no one-size-fits-all answer.

For instance, a single sheath ADSS might be perfect for a short, straightforward span in a rural area with minimal environmental challenges. However, for a long-span application crossing a river or in a coastal region with high salt and wind, the double sheath version is non-negotiable. Its enhanced resistance to the elements ensures long-term reliability.

Www.adsscable.cn

Secret #4: A 5-Step Guide to Making the Right Choice

Don't guess. Follow this logical process to select the correct ADSS cable sheath type.

1. Analyze the Span: Determine the exact distance between poles. Longer spans place Mehr tension and stress on the cable, often necessitating a double sheath.

2. Assess Environmental Risks: Evaluate wind speed, ice loading, temperature extremes, and potential for UV exposure or pollution.

3. Check the Voltage Level: The electric field strength of the power lines determines whether you need standard PE or special AT (Anti-Tracking) sheath material, regardless of single or double layers.

4. Consider Total Cost of Ownership: While a single sheath has a lower initial cost, a double sheath may offer lower lifetime costs due to reduced maintenance and longer service life in tough conditions.

5. Consult Manufacturer Specifications: Review the technical data sheets for the specific cables. Look for metrics like Maximum Allowable Tension (MAT) and crush resistance ratings.Www.adsscable.cn

⚠️ Note: A major mistake is selecting a cable based on price alone. A cheaper single-sheath cable in a demanding long-span environment is a high-risk strategy that will likely lead to costly failures and downtime.

Secret #5: The Counter-Intuitive Cost Truth

It's natural to think two layers must cost much Mehr. Interestingly, while a double sheath ADSS cable has a higher material cost, the difference isn't always dramatic. The real savings come from avoiding future repairs.

We saw this firsthand on a project where a client opted for single-sheath cable over a 800-meter river crossing to save costs. Within two years, cable twisting and weather-induced stress caused a failure. The repair cost, including outage time, far exceeded the initial price difference for the double-sheath option. Understanding the ADSS single vs double sheath application difference would have prevented this.

Your ADSS Sheath Selection Checklist

• Span Length: Is it over 300 meters or subject to high wind/ice? → Lean towards Double Sheath.

• Environment: Is it harsh (coastal, industrial, high pollution)? → Double Sheath is strongly recommended.

• Mechanical Risk: Is there risk of impact or abrasion? → Double Sheath provides better protection.

  Www.adsscable.cn

• Sheath Material: Have you confirmed the need for PE or AT material based on voltage? → This is critical for both types.

Making the right choice between ADSS single vs double sheath empowers you to build a resilient and cost-effective network. It’s a decision that pays dividends for decades.

Frequently Asked Questions (FAQs)

1. Q: Can you visually tell single sheath from double sheath ADSS cable?
   A: It can be difficult. The best way is to check the cable's specification sheet or look for markings on the jacket itself, which often indicate the construction type.

2. Q: Does double sheath ADSS cable have a longer lifespan?
   A: Generally, yes. The additional protective layer provides superior resistance to environmental degradation, which can extend the service life, especially in demanding conditions.

3. Q: Is the installation process different for the two types?
   A: The fundamental installation principles for ADSS cable are the same. However, double-sheath cable may be slightly heavier and stiffer, which should be considered during handling and tensioning.

4. Q: How does the sheath type affect cable attenuation?
   A: The sheath itself doesn't directly affect attenuation. However, a Mehr robust sheath (like double sheath) better protects the fibers from micro-bends and stresses that can indirectly cause increased attenuation over time.

5. Q: Is single sheath ADSS ever used on high-voltage power lines?
   A: Yes, but only if the span is short, the environment is benign, and the correct AT (Anti-Tracking) sheath material is used to resist the electric field. The decision is based on a full engineering analysis.
