G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is ap
| Product Information: |

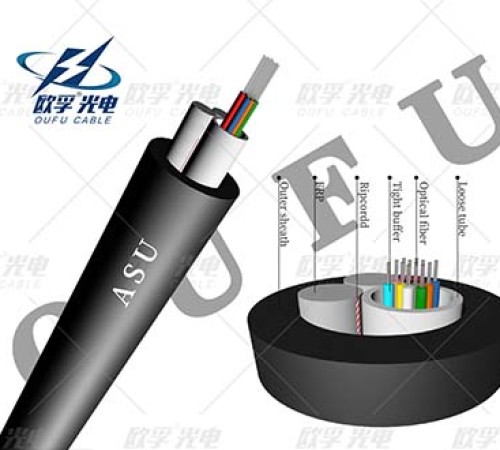

G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic(FRP) elements are placed on the two sides.The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.
| Temperature Range: |
Operating :-40C to 70C
Storage:-50°C to 70C
Installation :-30C to 70
Bending Radius:
Static 10D
Dynamic 20D
| Features: |
Proven all-dielectric loose tube construction lmmune to electromagnetic fields Fast,
one-step installation Integrated FRP strength elementsRound cable profiles minimize wind and ice loading
FRP Filled element make cable hight tension
Tube filling gel
Loose tube stranded
PE sheath outdoor cable
Anti water yean protect cable from water
| Product Specification: |
| Description: |
The 2~24 Fibers ASU CableAS80 and AS120) is a Self-Supported Optical Cable, lt was developed toprovide the connection between devices, being indicated for installation in urban and rural networksin spans of 80m or 120m. Because it is self-supported and totally dielectric, it has FRP strengthmember as a traction element, thus avoiding electrical discharges in the networks. lt is easy to handleand install, eliminating the need to use strings or grounding.
t is mainly used in the communication route of overhead high voltage transmission system, and canalso be used in the communication line under the environment such as lightning zone and longdistance overhead line.
ompared with the stranded ADSS Fiber- Opstik kabell, This Fiber- Opstik kabell can not only save the use ofimported aramid yarn, but also reduce the manufacturing cost due to the reduction of the overalstructure size. Compared with the common 150-meter span ADSS-24 Fiber- Opstik kabell , the price ofthe This cable of the same specification can be reduced by 20% or Mehr.
| Fragen un Antwer:: |
Q1：Büst du en Maker?
A1: Ja. Wi sünd en Vervaardiger mit 15 Johren Vörgeschicht. Wi steht de beste Priest direkt vun de Facht.
Q2：Kannst du mien Brandnaam (Logo) op disse Produkten setten?
A2: Ja! Wi fastleggt professionele OEM- Deensten. Uns Fabriek kann de Logo- Beding free för de Groten mit de Reeg maken.
Q3：Bruukst Du lütte Befehlen?
A3: Jo, lütte Reeg sünd jümmers verföögbor. Wi ünnerstütt nieg Projekten vun uns Brukern, wiel wi ok groot Bedingen vun lütte Reeg weett.
Q4：Kannst du uns mehr Produken praatstellt, de uns mit mehr schrieven to sekern?
A4: Na. OPGW- Kabel, ADSS- kabel, ACSR- Cable, FTTH- Dropen kabel, buitenden Fiberkabel, binnen Fiber kabel, Fiber kabel- Togriegen, Patch, Pigsteel un Lüttflaahn kabel sünd un ons Hööft- Produken.
